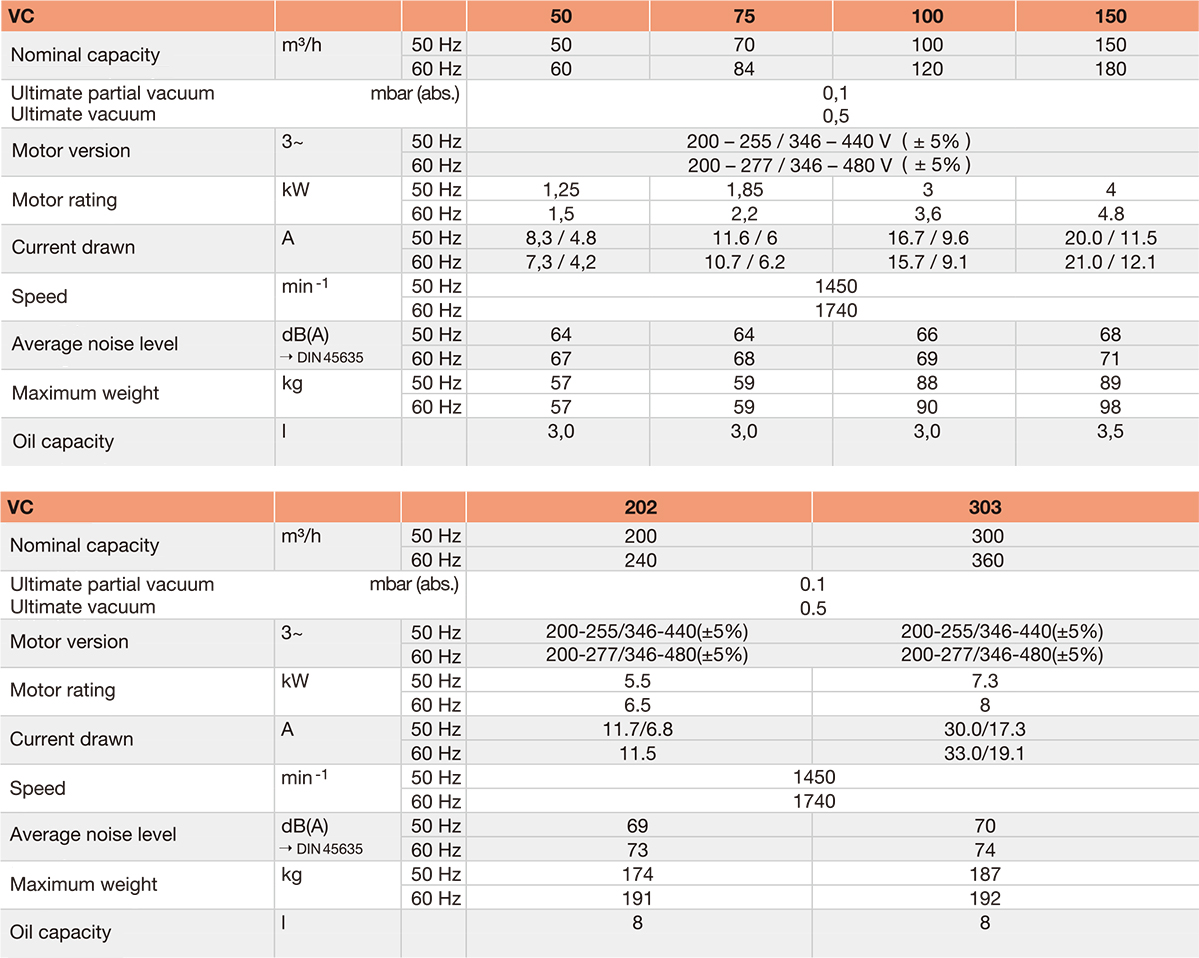

Model Specifications

Feature

• The oil-lubricated rotary vane design achieves an ultimate vacuum down to 0.1 mbar(abs.) with flow rates from 50 to 360 m³/h.

• Static compression through eccentric rotor-mounted vanes ensures stable, pulsation-free performance across vacuum and combined applications.

• Long-life vanes, combined with an integrated oil/air heat exchanger, extend service intervals and reduce total cost of ownership.

• Low noise levels are maintained by precision-balanced rotors supported by bearings on both sides and effective acoustic shielding.

• High water-vapor tolerance allows reliable operation in humid or condensable process environments without performance degradation.

• A built-in fine-mesh filter, vacuum non-return valve, and gas ballast valve provide comprehensive contamination protection and rapid recovery.

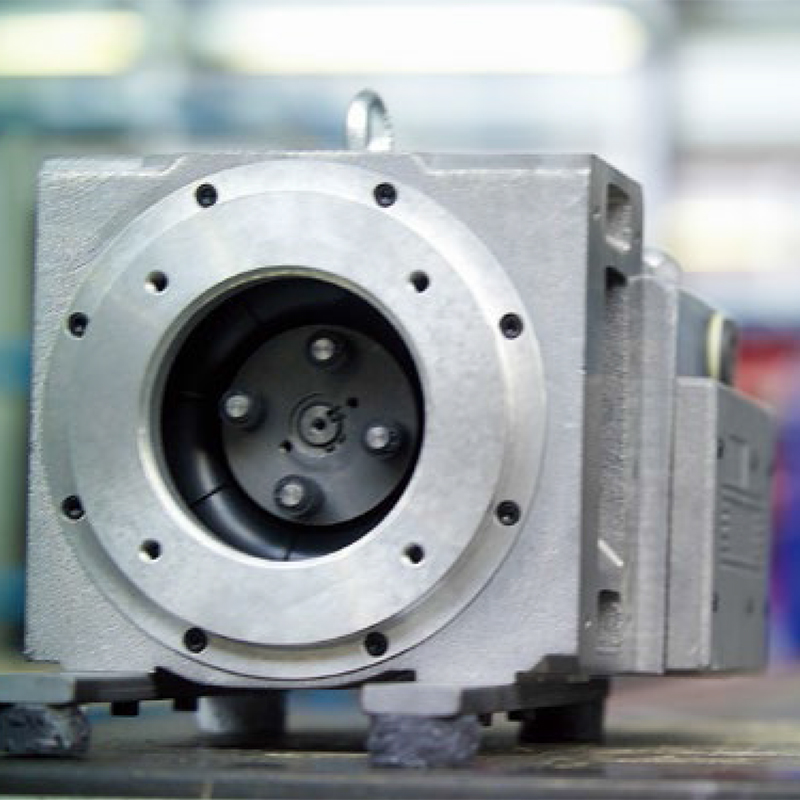

• Compact, flange-mounted motor construction simplifies installation and minimizes footprint in space-constrained industrial settings.

• Standard protection cover and oil separator enhance operational safety while facilitating straightforward maintenance and inspection routines.

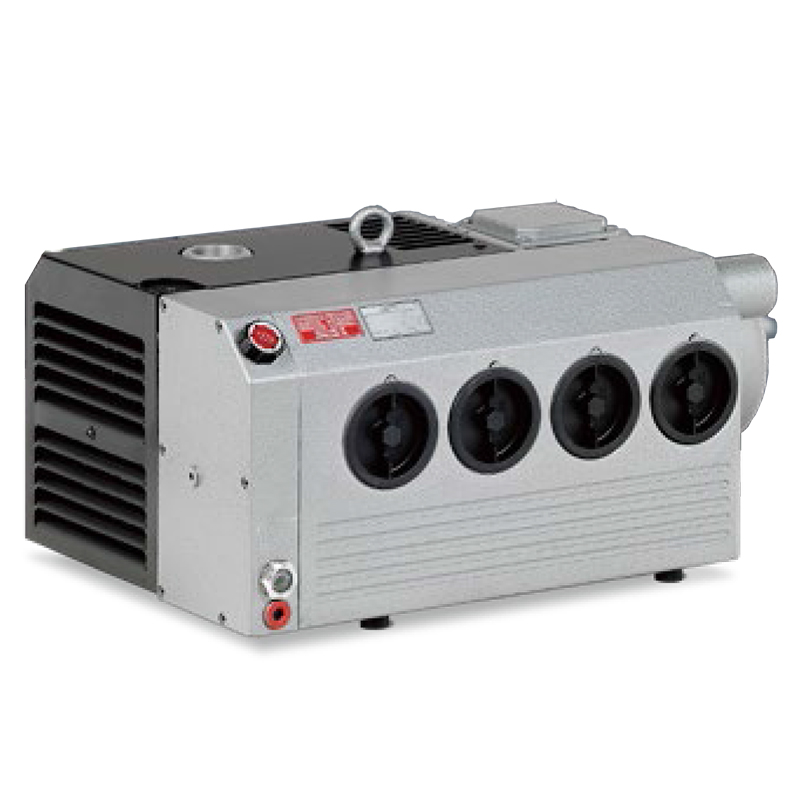

Product Showcase

Payment

More payment terms could be provided (T/T, Western union, LC, money gram, aliexpress).

Shipping

1.2000sets / day. Sample order for 7 days. 14 days in bulk. Customization is negotiable.

2.Delivery time: after payment receipt confirmed (based on actual quantity).

3.Packing: standard export packing, or customized packing as your request.

4.Professional goods shipping forwarder.

FAQ

Q1.Why choose us ?

1、Seehigh is the first level agent of Ingersoll Rand Industrial Group's air compressor department .

2、Seehigh can provide one-stop services for customers including pre-sales technical consultation, in-sales solution provision, on-site investigation, and after-sales maintenance and operation.

3、Timely and efficient quotation and shipment.

Q2.What is your packing way ?

A: Normally is carton box，you can choose packing way as need。

Q3. How about your delivery time?

A: Generally, it will take 5 to 7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDP, it's up to you.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.
