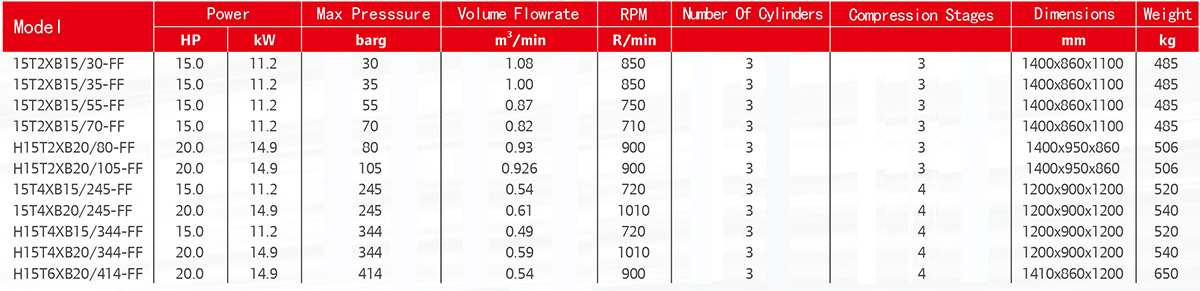

Model Specifications

Feature

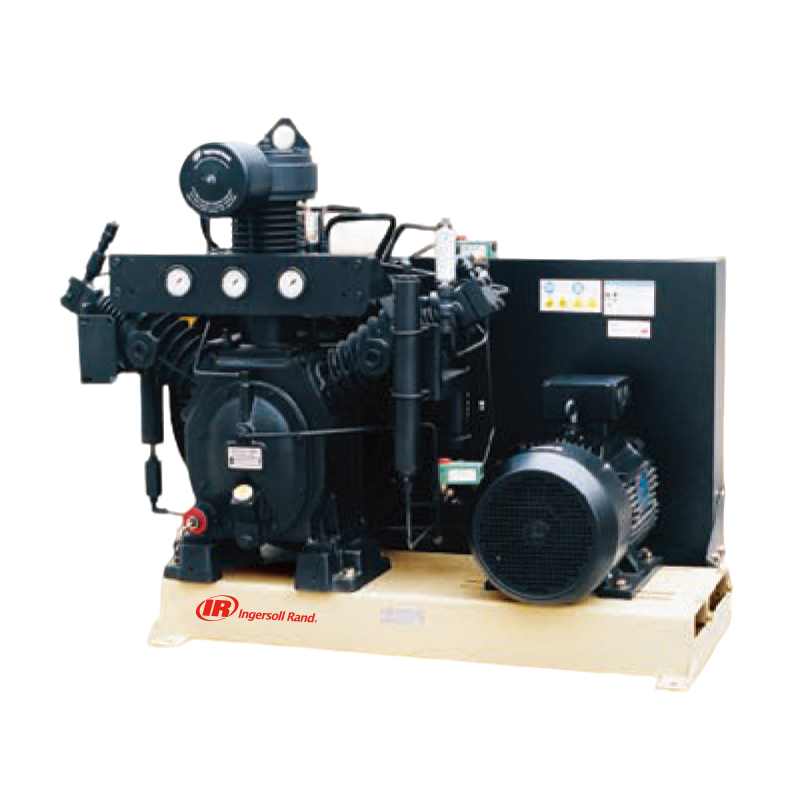

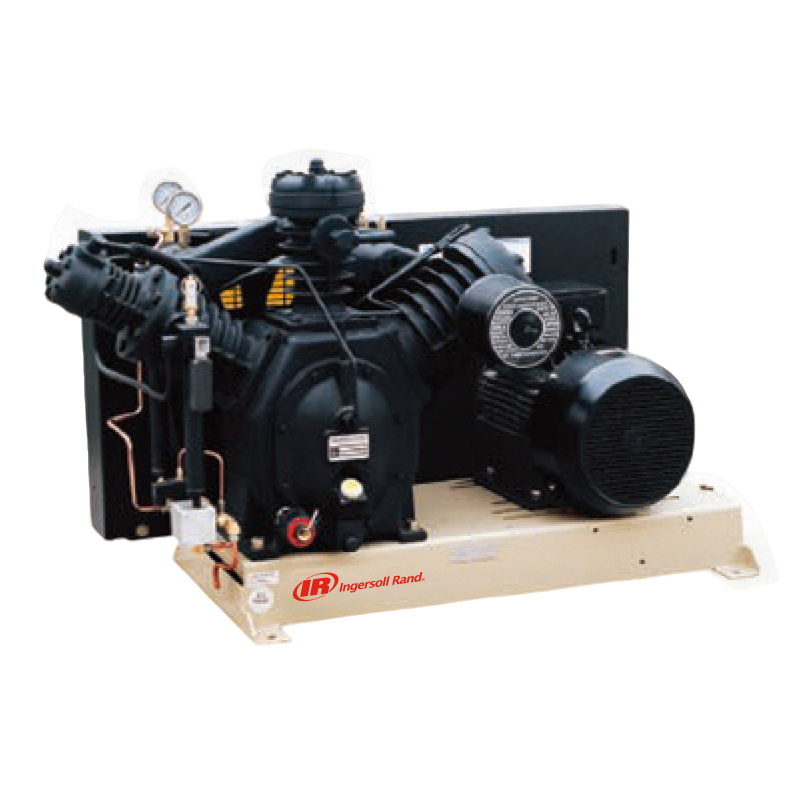

• The T30 high - pressure complete type piston air compressor is equipped with an industrial - grade air intake filter, which can effectively filter out dust and impurities in the air, ensuring the purity of the intake air and reducing wear on internal components.

• It adopts splash lubrication, which is simple in structure, low in cost, and reliable in operation. The lubricating oil splashed by the rotating parts can evenly lubricate all moving parts, ensuring the normal operation of the compressor.

• The air - cooled intercooler and aftercooler are installed. The intercooler can effectively reduce the temperature of the compressed air between stages, improving compression efficiency and reducing energy consumption. The aftercooler can further cool the compressed air, making the exhaust temperature meet the requirements.

• It is equipped with a pressure gauge for each stage, which allows operators to conveniently monitor the pressure of each stage in real - time, so as to promptly detect and deal with abnormal pressure situations and ensure the stable operation of the compressor.

• Safety valves are installed at key positions such as the inter - stage and exhaust ports. When the pressure in the system abnormally rises, the safety valve will automatically open to release the pressure, preventing the occurrence of safety accidents due to over - pressure.

• An automatic condensate drain valve is installed, which can automatically discharge the condensate water in the system. This prevents the accumulation of condensate water from affecting the performance of the compressor and reduces the maintenance workload of manual drainage.

• An exhaust check valve is installed to prevent the backflow of compressed air when the compressor stops running, which can protect the internal components of the compressor from being damaged by the backflow of high - pressure gas and ensure the normal start - up of the compressor next time.

• A high - temperature alarm switch is provided (optional for some models), which can automatically alarm and shut down the machine when the exhaust temperature of the compressor is too high, effectively preventing equipment damage caused by overheating.

• A low - oil - level switch is installed to monitor the lubricating oil level in real - time. When the oil level is too low, it will automatically alarm and shut down the machine to prevent equipment damage due to insufficient lubrication.

• The dual - control system (optional for some models) provides more flexible control modes, which can meet different working requirements of users and improve the adaptability and convenience of the compressor in various working conditions.

Product Showcase

Payment

More payment terms could be provided (T/T, Western union, LC, money gram, aliexpress).

Shipping

1.2000sets / day. Sample order for 7 days. 14 days in bulk. Customization is negotiable.

2.Delivery time: after payment receipt confirmed (based on actual quantity).

3.Packing: standard export packing, or customized packing as your request.

4.Professional goods shipping forwarder.

FAQ

Q1.Why choose us ?

1、Seehigh is the first level agent of Ingersoll Rand Industrial Group's air compressor department .

2、Seehigh can provide one-stop services for customers including pre-sales technical consultation, in-sales solution provision, on-site investigation, and after-sales maintenance and operation.

3、Timely and efficient quotation and shipment.

Q2.What is your packing way ?

A: Normally is carton box，you can choose packing way as need。

Q3. How about your delivery time?

A: Generally, it will take 5 to 7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q4. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDP, it's up to you.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.
